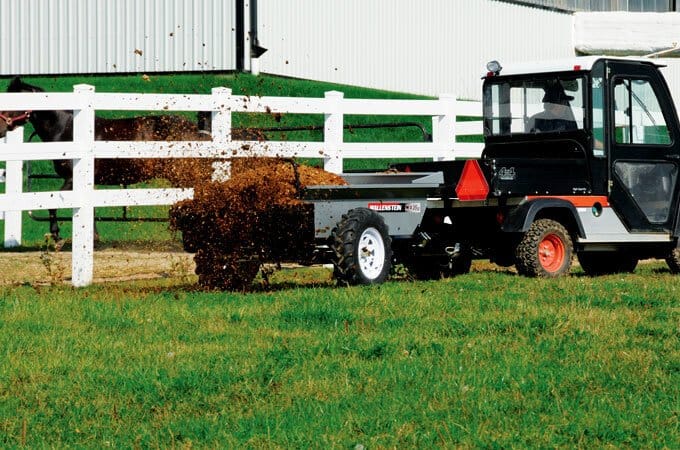

The MX series of compact manure spreaders from Wallenstein are ground + PTO driven manure spreaders, ideal for keeping stables clean and making the most out of nature’s bounty. They are the best way to control your pasture, with the minimum amount of odour due to the fine shredding process. Designed for ease of use in equine facilities and hobby farms, MX spreaders are the perfect size to handle manure from barn to field without making a mess.
All Wallenstein manure spreader have three levels of unloading (spreading) speed affecting the apron chain (these are the only spreaders on the market which do so). A few moments is all it takes to get the right coverage for your application requirements. The heavy duty apron chain can increase or decrease to maximise manure spread and all Wallentstein spreaders are focused on providing an even spread pattern as the beater panels break up and distribute the manure evenly across the ground in small pieces. This fine shred pattern makes it easier for the manure to be absorbed into the ground and avoids large clumps from damaging the grass.
MX Manure Spreaders
These compact manure spreaders come at an affordable price and have a one piece welded bed frame for durability, made from tubular steel. The frame, not the box, handles the weight load and pulling force. Frames start with a strong foundation and are built up using sturdy, heavy gauge steel construction, finished with a baked on powder coating to prevent rust. Unlike metal and wood, a Poly-Floor (industrial grade plastic) board that is resistant to weather is used, extending the life of your spreader. Poly-Floor will not rust or rot and is flexible.
MX spreaders are available as ground driven models (for where a PTO does not exist) and also as PTO models, which can be attached to your tractor.
MX Ground Drive Specifications
|No. of Paddles||8||10||10|
|Tyres||6 x 12 tyres||7.6 x 15 tyres||7.6 x 15 tyres|
MX PTO Drive Specifications
|No. of Paddles||10||10|
|Tyres||7.6 x 15 tyres||7.6 x 15 tyres|
MX130 Manure Spreader
With 10 replaceable paddles on the bottom feeder, the MX130 manure spreader offers power and value for money as it’s used with 45-75hp tractors and has all the basic features and foundation of the MX25G and MX80G. There’s an easy access chain tensioner and many other features:
- Replaceable paddles on bottom feeder
- Heavy duty apron chain
- 130 Bushel heaped capacity
- One piece Co-Ten box side
- Easy access chain tensioner
- Multi-step paint process
- Hydraulic hose keeper
- Beater speed control and clean out function
- Optional fines pan
- Optional end gate
- Optional upper beater
|No. of Paddles||10 Replaceable|
|Gears||2 Speed apron drive + cleanout speed|
