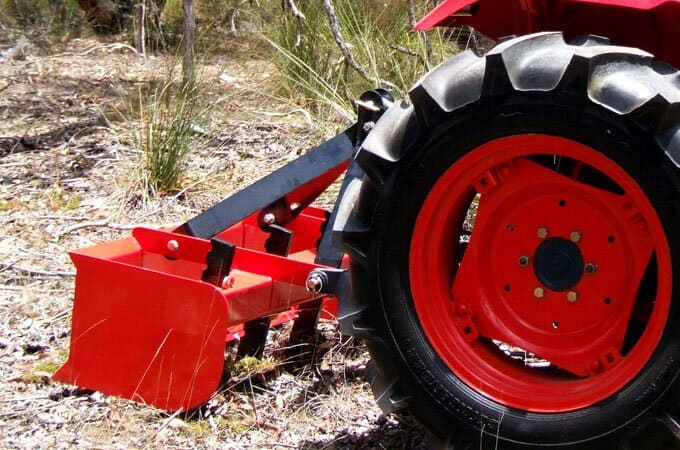

AGMAX Box Scrapers are used for ripping, grading and levelling of soil.
Box Scrapers are used extensively in the USA and the AGMAX Box Scraper is the heaviest in its class, in Australia. An AGMAX Box Scraper is ideal for:
- Preparation of garden beds
- Eradication of rabbit burrows
- Gravel road repairs
- Creation of fire breaks,
- Grading of plant matter and soil
- Tree planting preparation
- Levelling of uneven surfaces
- Track creation
- Backfilling of holes and trenches
The AGMAX box scraper has a strong steel box frame for grading and a set of fully adjustable tines that can lightly scarify or deep rip, depending on your requirements. The rear blade acts as a conventional grader blade, however the added weight* of the box frame provides increased downward pressure and “bite” into the ground. The Box Scraper traps and redistributes the newly ripped soil while simultaneously collecting debris such as roots and plant matter within the confines of the box. A work area can be prepared and cleaned in one action, saving time.
The rear blade can also be used as a grader when the tractor drives in reverse. The tines within the box are fully adjustable, either individually or as a set, to enable scarifying or soil ripping. They are easily removed or stored upside down inside the box frame.*The AGMAX box scraper is the heaviest in its class, on the market.
Box Scraper Specifications
| Model | V300 | V400 | V500 | V600 |
| Tractor HP | 18-25 | 25-35 | 30-55 | 50-65 |
| Three Point Linkage (TPL) | Cat 1 | Cat 1 | Cat 1 or 2 | Cat 1 or 2 |
| Working Width | 1050mm (3’5″) | 1200mm (4′) | 1500mm (5′) | 1700mm (5’7″) |
| Length | 650mm (2’1″) | 650mm (2’1″) | 650mm (2’1″) | 650mm (2’1″) |
| Height | 960mm (3’1″) | 960mm (3’1″) | 960mm (3’1″) | 870mm (2’10”) |
| Digging Depth | 200mm (8″) | 200mm (8″) | 200mm (8″) | 200mm (8″) |
| Tines | 3 | 4 | 5 | 6 |
| Weight | 110kg | 132kg | 162kg | 183kg |
