An AGMAX post hole digger is a strong, go-to implement for building paddocks, general fencing and tree planting.
With four interchangeable augers available – 150mm (6”), 230mm (9”), 300mm (12”) and 450mm (18″), an AGMAX post hole digger will dramatically reduce the human effort required, to complete a broad variety of tasks.
The AGMAX post hole digger utilises a heavy, 50hp gearbox, making it suitable for most soils. All augers have replaceable teeth and pilot guides, which are readily available from all SOTA Tractors’ branches.
Medium-duty Hydraulic Post Hole Digger
If the majority of your PHD work will be on hard ground, or if you intend to use it regularly, we recommend the AGMAX medium-duty post-hole digger, which provides increased downforce, via a dedicated hydraulic cylinder.
*Please note that the AGMAX medium-duty post-hole digger requires a tractor of at least 35hp, which is equipped with hydraulic remotes.
Post Hole Digger Specifications (Standard)
| Model | PD150 | PD230 | PD300 |
| Tractor HP | 17-55 | 17-55 | 17-55 |
| Three Point Linkage (TPL) | Cat 1 or 2 | Cat 1 or 2 | Cat 1 or 2 |
| Length | 1700mm (5’7″) | 1700mm (5’7″) | 1700mm (5’7″) |
| Width | 800mm (2’7″) | 800mm (2’7″) | 800mm (2’7″) |
| Boom Size Reinforced | 200mm (8″) | 200mm (8″) | 200mm (8″) |
| Gearbox | 50hp | 50hp | 50hp |
| Auger Model | AU150 | AU230 | AU300 |
| Auger Length | 1200mm (3’11”) | 1200mm (3’11”) | 1200mm (3’11”) |
| Auger Width | 150mm (6″) | 230mm (9″) | 300mm (12″) |
| PTO | 540rpm | 540rpm | 540rpm |
| Weight | 75kg + 18kg | 75kg + 20kg | 75kg + 22kg |
Post Hole Digger Specifications (Medium Duty)
| Model | PDMD150 | PDMD230 | PDMD300 |
| Tractor HP | 35-55 | 35-55 | 35-55 |
| Three Point Linkage (TPL) | Cat 1 or 2 | Cat 1 or 2 | Cat 1 or 2 |
| Length | 2150mm (7′) | 2150mm (7′) | 2150mm (7′) |
| Width | 880mm (2’10”) | 880mm (2’10”) | 880mm (2’10”) |
| Height | 1700mm (5’7″) | 1700mm (5’7″) | 1700mm (5’7″) |
| Boom Size Reinforced | 100mm x 100mm | 100mm x 100mm | 100mm x 100mm |
| Gearbox | 50hp | 50hp | 50hp |
| Auger Model | AU150 | AU230 | AU300 |
| Auger Length | 1200mm (3’11”) | 1200mm (3’11”) | 1200mm (3’11”) |
| Auger Width | 150mm (6″) | 230mm (9″) | 300mm (12″) |
| Hydraulic LPM Required | 12+ LPM | 12+ LPM | 12+ LPM |
| PTO | 540rpm | 540rpm | 540rpm |
| Weight | 130kg + 18kg | 130kg + 20kg | 130kg + 22kg |

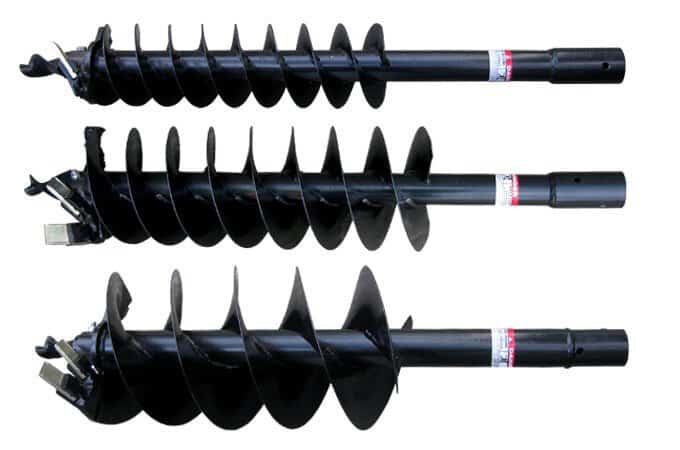

Augers
The AGMAX AU150 (6”) auger is ideal for making pilot holes for bigger augers in tough ground or holes for treated pine fence posts. Having uniformly sized posts matched to your auger reduces the amount of backfilling and ramming.
For most fencing applications, use the AGMAX AU230 (9”) auger. It’s also handy for tree planting, but make sure to break up the hole with your bar afterwards. Surfaces glazed from post-hole boring can be impervious to establishing roots.
Suitable for larger jobs, the AGMAX AU300 (12”) auger is useful for digging stay posts or stumping a shed. Using a 25hp tractor and above is recommended.

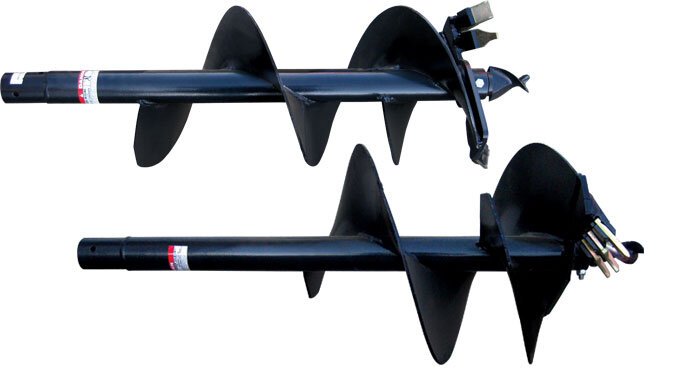

The AGMAX AU450 (18″) auger is used to dig holes for larger retaining walls and for planting established trees with a sizeable root ball.
All AGMAX augers feature hardened, replaceable cutting teeth and pilot guides and a superior double-cut auger design.
