SOTA Tractors sells AGMAX Loaders with 4-in-1 bucket kits to suit imported Japanese tractor brands, including Kubota, Yanmar, Mitsubishi, Shibaura & Iseki.
AGMAX self leveling front end loaders with 4-in-1 buckets are extremely versatile and can be used for loading, grabbing, grading, scraping/levelling, transportation, clearing debris and relocation of dead trees.
These strong machines have been tested to the international standard ISO 14397-1-2002 and come with a comprehensive operator’s manual.
In 2004, SOTA introduced Australia to tractors fitted with front end loaders and 4-in-1 buckets as “standard kit”. Prior to this, a 4-in-1 bucket was only available as a special order, expensive and difficult to obtain. They were instantly popular, especially with hobby farmers who could now grade their drives, collect firewood, spread mulch and move earth – all with a single machine.
All of SOTA’s tractors – APOLLO and Kubota, have a front end loader with a 4-in-1 bucket.

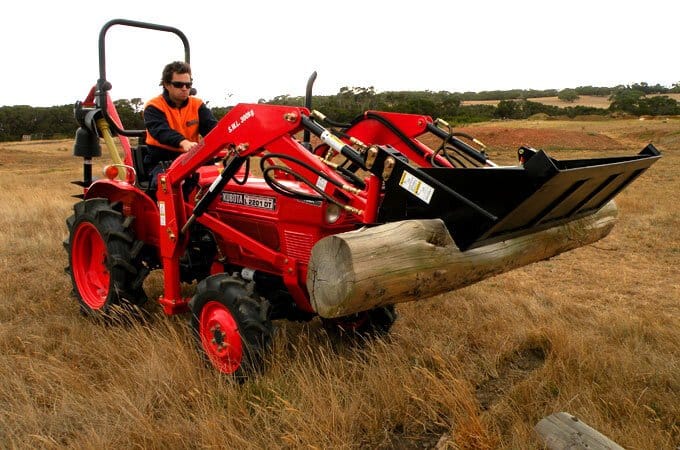

The front end loader is extremely robust and fully serviceable, with grease nipples provided at all wearing points. The sub-frame does not affect clearance, and the controls are mounted close to the steering wheel. Offering huge advantages over a fixed style bucket, the 4-in-1 bucket is ideal for picking up logs, rocks and general blade work. The jaws can be used to pull out woody weeds, shrubs and old fence posts.

Note: AGMAX front end loaders may need some adjustment to fit certain tractors and it is recommended that the loader be fitted by a qualified mechanic.



SOTA Tractors carries AGMAX 4-in-1 loader kits for most Kubota models, in stock. We are able to take orders for other brands such as Yanmar, Mitsubishi and Iseki. Delivery is Australia wide.

AGMAX front end loaders fit many Japanese tractors from leading manufacturers including Kubota, Iseki, Yanmar, Hinomoto, Satoh, Shibaura and Mitsubishi.
FEL Specifications
Model | X25 | X35 | X45 |
Tractor HP | 16-20 | 20-35 | 35-46 |
SWL 100kg Ballast | 140kg | 300kg | 550kg |
Bucket Capacity (Volume) | 0.11m3 | 0.12m3 | 0.15m3 |
Bucket Height | 350mm (1’2″) | 350mm (1’2″) | 350mm (1’2″) |
Bucket Width | 1260mm (4’1″) | 1260mm (4’1″) | 1700mm (5’7″) |
Hydraulic Flow | 11.1 l/m | 14.1 l/m | 17.1 l/m |
Lift Height | 1900mm (6’3″) | 2100mm (6’10”) | 2300mm (7’6″) |
Dump Clearance | 1500mm (4’11”) | 1800mm (5’11”) | 1800mm (5’11”) |
Crowd Angle | 15 degrees | 15 degrees | 25 degrees |
Dump Angle (Full Height) | 80 degrees | 80 degrees | 80 degrees |
Self Levelling | Yes | Yes | Yes |
Weight | 309kg | 380kg | 489kg |
