AGMAX box scrapers, also known as tractor box blades, are tractor implements used for the ripping, grading and levelling of soil.
Box scrapers have been used extensively in the USA for decades and have become popular in Australia. An AGMAX box scraper is ideal for:
- Preparation of garden beds
- Eradication of rabbit burrows
- Gravel road repairs
- Creation of fire breaks,
- Grading of plant matter and soil
- Tree planting preparation
- Levelling of uneven surfaces
- Track creation
- Backfilling of holes and trenches
View box scraper specifications

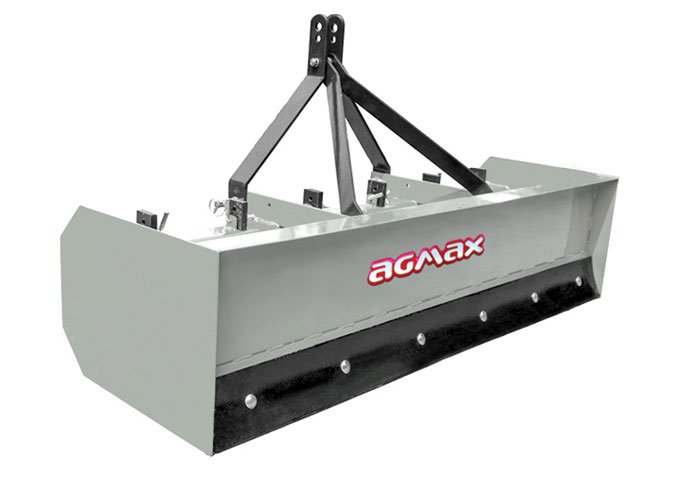

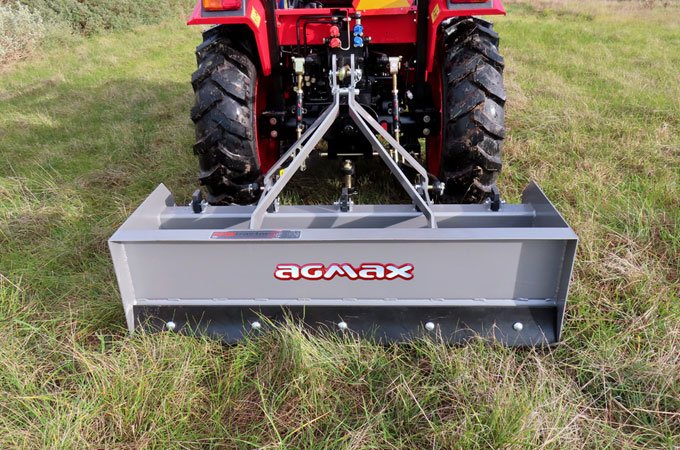

The AGMAX box scraper features a strong steel box frame for grading and a set of fully adjustable tines that can lightly scarify or deep-rip, depending on your requirements. The rear blade acts as a conventional box grader blade; however, the added weight* of the box frame provides increased downward pressure and “bite” into the ground. The box scraper traps and redistributes the newly ripped soil while simultaneously collecting debris such as roots and plant matter within the confines of the box. A work area can be prepared and cleaned in a single step, saving time.

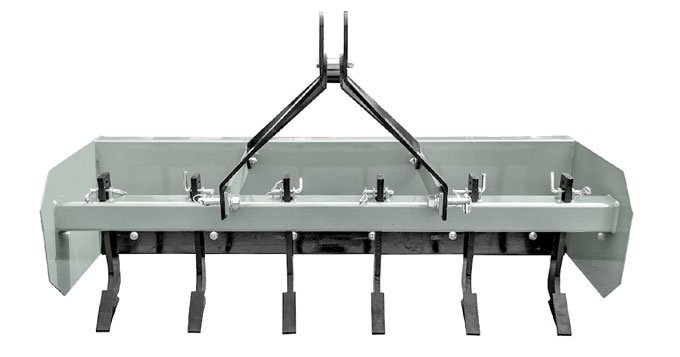

The rear blade can also be used as a grader when the tractor drives in reverse. The tines within the box are fully adjustable, either individually or as a set, to enable scarifying or soil ripping. They are easily removed or stored upside down inside the box blade frame.
Box Scraper Specifications
| Model | BS120 | BS150 | BS180 |
| BUY ONLINE | Shop Now | Shop Now | Shop Now |
| Tractor HP | 25-35 | 28-45 | 45-60 |

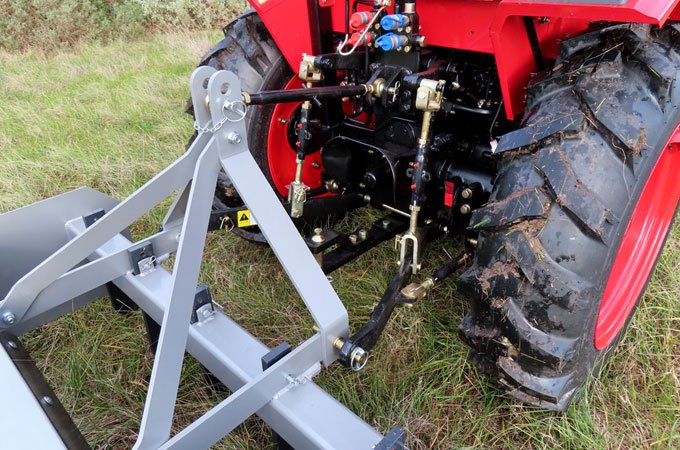

| Three Point Linkage (TPL) | Cat 1 | Cat 1 | Cat 1 or 2 |
| Length | 64cm (2’1″) | 64cm (2’1″) | 64cm (2’1″) |
| Width | 122cm (4′) | 152cm (5′) | 182cm (6′) |
| Working Width | 120cm (3’11”) | 150cm (4’11”) | 180cm (5’11”) |
| Height | 98cm (3’3″) | 98cm (3’3″) | 98cm (3’3″) |
| Digging Depth | 10cm (4″) | 10cm (4″) | 10cm (4″) |
| Tines | 4 | 5 | 6 |
| Weight | 140kg | 164kg | 190kg |
Warranty & Support
BEST PRICE – BEST WARRANTY – BEST SUPPORT
Buy direct and save! SOTA is the importer of AGMAX implements in Australia.
AGMAX implements are fully supported – we carry spare parts for all AGMAX models in stock.
AGMAX implements are warranted for 2 years against failure when properly maintained and operated.
AGMAX box scrapers are proven performers and widely used in over a dozen European countries, including Germany, Austria, Italy, Spain, Denmark, Switzerland and Ireland.
