Tractor Backhoe Attachment for Small, Medium & Large Tractors
A Del Morino tractor backhoe is a superbly engineered machine that can be fitted to any 18-120hp tractor with a three-point linkage (TPL). These high performance, linkage backhoes make easy work of excavating and digging tasks. A Del Morino linkage backhoe attachment will save you time and save your back.
> Del Morino backhoes on sale – prices here!
> Specifications for all Del Morino Backhoes

Del Morino tractor backhoes have an independent hydraulic oil tank; hydraulic remotes are not required for operation. It can be used with virtually any tractor that has a PTO.
> Will a cheap Asian backhoe do? Aren’t all linkage backhoes the same?
> The Famous Del Morino RES10 The best sub-compact tractor backhoe for Kubota.
> Del Morino RES30 – Our popular, mid-sized backhoe for 28hp to 55hp tractors
> Del Morino RES50 – Large Del Morino backhoe for 50hp to 120hp tractors
> Tractor Loader Backhoe Packages SOTA’s range of tractors, matched with a loader & backhoe
Great Price & First-Class Support
SOTA is the exclusive importer and distributor of Del Morino backhoes for tractors. They are the most competitively priced quality tractor backhoes on the Australian market because SOTA sell directly; there are no middlemen. Del Morino backhoes are world-class tractor TPL (linkage) backhoes, which are beautifully engineered. You will be able to complete those jobs that you dreamt about doing and much more!
Quality Tractor Backhoes Performs & Keeps Performing
A quality backhoe is not a “cheap” implement and while there are some relatively cheap Asian tractor backhoes on the market, they are often fraught with issues such as poor geometry, inferior components, low build quality and poor bucket design. This can render the backhoe almost useless and ultimately, a waste of money.
Reasons To Choose Del Morino Tractor Backhoes
Del Morino backhoes utilise high quality componentry and design, to produce a superior backhoe that does what it is intended to do; some backhoes simply don’t!
Del Morino backhoes feature:
- Italian hydraulic pumps, by MITA.
- Italian hydraulic cylinders.
- Italian hydraulic hoses, by TEKNO.
- Purpose-specific buckets that are of a similar shape to a $35,000 excavator. Bucket shape has a significant impact on backhoe performance.
- Up to 6 sizes of buckets from which to choose.
- Independent, hydraulically-operated stabilizer legs, to optimize stability on uneven ground.
- Hydraulic control unit with pressure regulator to prevent damage from immovable objects.
- Adjustable seat for optimal operating position.
- Tilt seat with gas strut for compact transportation and protection from the elements.
- Two years factory warranty & full support in Australia by SOTA Tractors

All Del Morino tractor backhoes feature 180 degree arm rotation, controlled by two hydraulic cylinders. All of the arm and bucket movements are hydraulically driven. DM backhoes have an ergonomic design and are easy to operate.

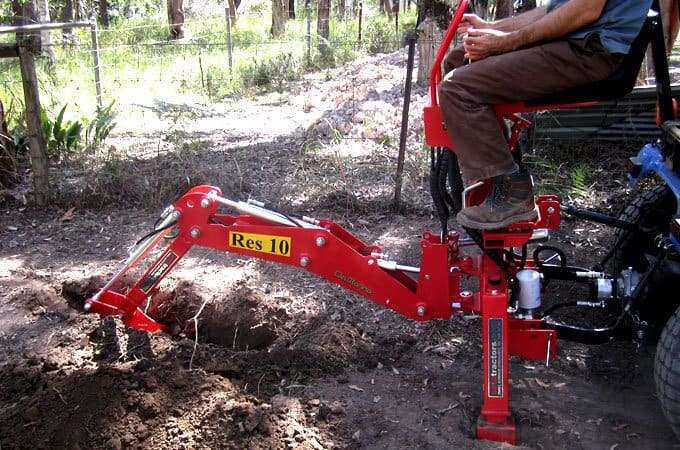

The Famous Del Morino RES10 Tractor Backhoe
The Del Morino RES10 is designed for sub-compact to small tractors, from 18-30hp. It is the best backhoe for a sub-compact tractors in Australia. In the RES10, Del Morino have been able to engineer a very light and fully-functional backhoe that is stable and transports safely on your tractor’s linkage. It may also be folded close to the tractor, compactly and conveniently, for storage. It is the best sub-compact tractor backhoe for Kubota and other sub-compact tractors brands.

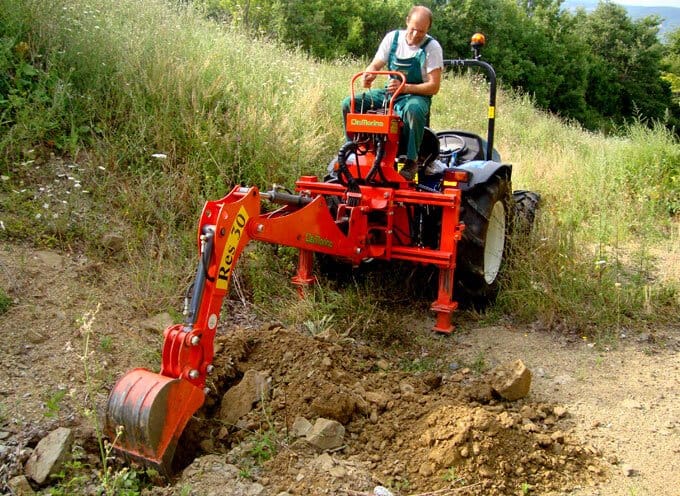

DEL Morino RES30 & RES50 Tractor Backhoes
The Del Morino RES30 & RES50 are suited to tractors from 28-55hp & 50-120hp, respectively. These models offer side-shifting movement of the arm, which is independent of the frame and is hydraulically locked. Each backhoe has its own self contained hydraulic oil reservoir driven by a pump connected to the rear PTO of the tractor.







“BTW, the backhoe is brilliant, just waiting for the weather to clear to dig more! ” – Paul.

“Just to let you know that the backhoe arrived on Friday night and works a treat.” – Ivan.

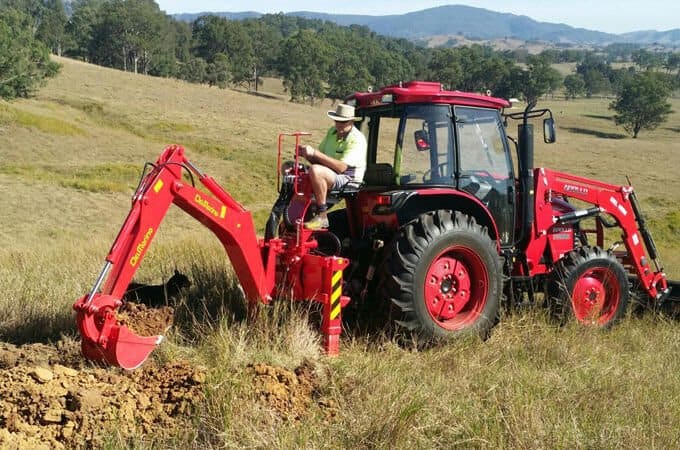

Del Morino RES50 Backhoe



Standard Features – Del Morino RES30 & RES50
- 180 degree arm rotation with side shift lock
- High performance cast iron pump
- Case hardened steel pins at all pivot points
- Self lubricated bushes
- Easy access and ergonomic seat with adjustable working position
- Stabiliser legs with locking valves

Del Morino Tractor Backhoe Specifications
Model | RES10 | RES15 | RES20 | RES30 | RES50 |
Tractor HP | 18-30 | 18-30 | 25-40 | 28-55 | 50-120 |
TPL | Cat 1 | Cat 1 | Cat 1 | Cat 1 & 2 | Cat 1 & 2 |
Arm Length | 220cm | 220cm | 234cm | 254cm | 345cm |
Max Working Height | 160cm | 165cm | 180cm | 200cm | 230cm |
Max Digging Depth | 140cm | 130cm | 155cm | 180cm | 250cm |
Digging Bucket | 25cm | 25cm | 30cm | 35cm | 40cm |
Stabilising Leg Max Height | 30cm | 30cm | 30cm | 30cm | 30cm |
Side Shift | No | Yes | Yes | Yes | Yes |
Shifting Lock | N/A | Mechanical | Mechanical | Hydraulic | Hydraulic |
Tearing Power @ Tooth | 1200kg | 1200kg | 1200kg | 1800kg | 2600kg |
PTO | 540rpm | 540rpm | 540rpm | 540rpm | 540rpm |
Weight | 236kg | 332kg | 385kg | 393kg | 640kg |

Bucket Options


Unsure which model is appropriate for your tractor? Please ring us on 1300 767 297 or email SOTA here. We’re happy to assist!
